3PH 380-415V 50HZ/60HZ HYSC-150A Air Cooled Water Chiller for Industrial Applications

Name: 3PH 380415V 50HZ60HZ HYSC150A Air Cooled Water Chiller for Industrial Applications
Brand: Hypet
Price: 44900 USD

Best 3PH 380-415V 50HZ/60HZ HYSC-150A Air Cooled Water Chiller for Industrial Applications wholesale

Brand Name : Hypet

Model Number : Screw type Air cooled water chiller HYSC-150A

Certification : ISO9001,CE

Place of Origin : China

MOQ : 1set

Price : USD 44900/set

Payment Terms : L/C, T/T

Supply Ability : 50set/month

Delivery Time : 35~45days

Packaging Details : Standard Package for sea shipment

Key parts warranty : 1year

Engineer installation service : Yes

cooling method : Air cooled

Nominal Cooling Capacity : 345806 kcal/h

Power Supply : 3PH 380-415V 50HZ/60HZ

Max Power Consumption : 131.6 kw

After-sales service provided : Field maintenance and repair service

Condition : New

Contact Now

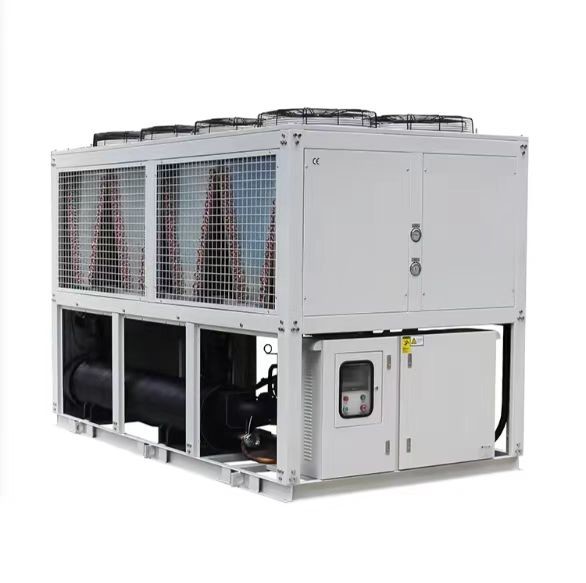

1. Screw type Air cooled water chiller HYSC-150A

3PH 380-415V 50HZ/60HZ HYSC-150A Air Cooled Water Chiller for Industrial Applications
2.HYPET Special features

1). This machine selects scroll type fully hermetic compressor and electronic control element, equipped with condenser and evaporator made of high efficiency and high quality copper tube for heat exchange;
2). Equipped with all kinds of safety protection devices, stable performance, low noise, long service life, simple operation; LCD display man-machine interface, easy to operate,operation status at a glance;
3). The model has a single compressor or multiple compressor combined refrigeration system. The compressor can automatically rotate according to the load change, balance the running hours of each compressor, to achieve the effect of saving energy consumption and extending the service life of the chiller. Easy energy regulation, more energy saving at partial load;
4). The machine shell box type structure, beautiful appearance, compact structure, can check the running status at any time; The machine can come with water tank and circulating water pump according to the cooling capacity, no need cooling tower and cooling water pump, easy to install and maintain.

3.Commercial items

SN	Item	Quantity	Unit Price/USD Total Price/USD
1	Screw type Air cooled water chiller HYSC-150A	1	44900	44900

			Total in EXW

4.Main Specification of the Machine

Item			Specification
Model			HYSC-150A
Nominal Cooling Capacity	7 ℃	kcal/h	345806
	7 ℃	kw	402.1
	12 ℃	kcal/h	417186
	12 ℃	kw	485.1
Max Power Consumption		kw	131.6
Power Source			3PH 380-415V 50HZ/60HZ
Refrigerant	Type		R22 / R407C
	Charge	kg	105
	control		Thermostatic expansion valve
Compressor	Type		Semi-Hermetic screw
	Power	kw	126.7
	Start mode		Y-Δ
	Capacity control %		0-25-50-75-100
Evaporator	Type		Shell and tube (ss plate heat exchanger)
	Chilled water volume	m³/h	69.5
	Water pressure drop	kpa	41
	Inlet and Outlet	inch	5
Condenser	Type		Air cooled type high efficiency finned copper tube
Fan	Type		Big volume & low noise axial fan
	power	kw	0.8 × 16
	Air volume	m³/h	135000
Unit Protection Modules			Compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence/phase missing protection, low level coolant protection, anti freezing protection, exhaust overheat protection
Dimension	Length	mm	6450
	Width	mm	1800
	Height	mm	2243
Weight		kg	3200

5.Cooperative Brands:

6.Exhibition:
